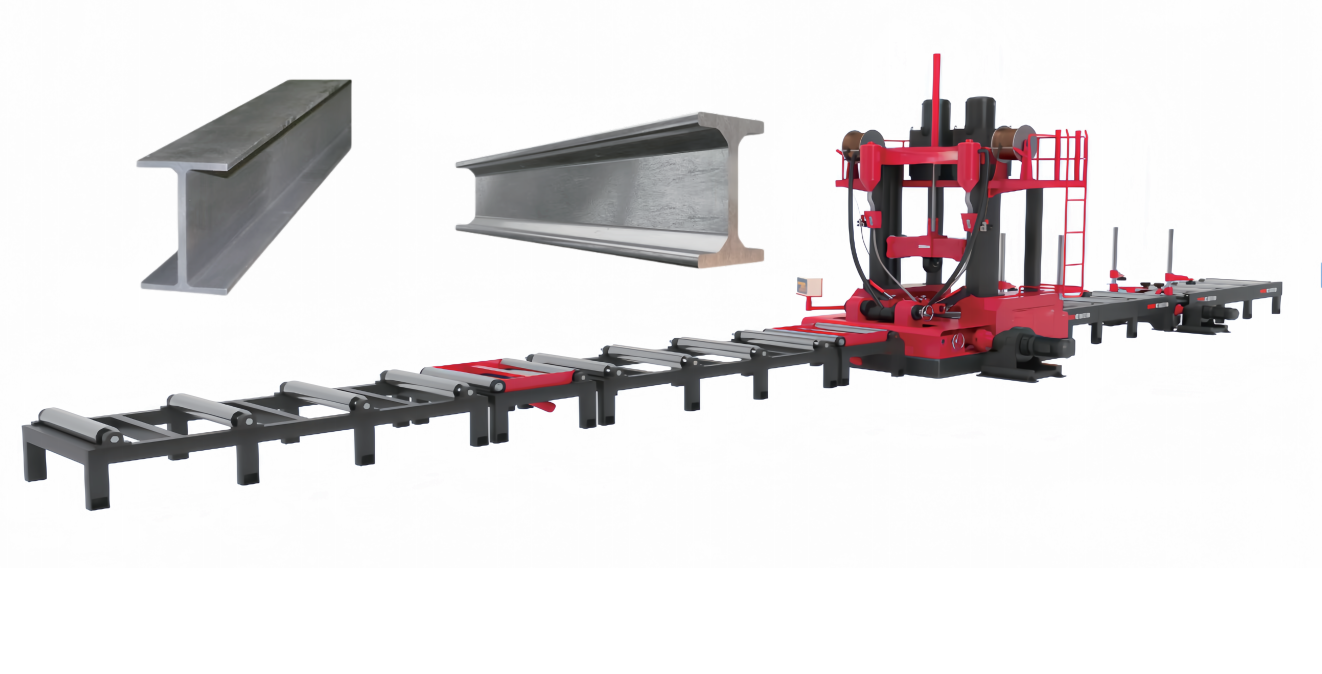

H-Beam Making Machine (Submerged arc welded)

Product name: H-Beam Making Machine (Submerged arc welded)

Category: H-Beam Making Machine (Submerged arc welded)

Feature:

1. Small occupied area

2. Few operators

3. Low power consumption of equipment

4. High product qualification rate

5. Welding without groove for webs below 18mm

6. No spot welding for shaping

7. Welding process without starting plate

8. Automatic model adjustment

9. Saving overhead crane

10. Reducing the probability of work-related injuries

11. Reducing the number of hoisting and workpiece movement, with high production efficiency

Main technical parameters:

1. Web height: 200-1800mm

2. Web thickness: 6-30mm

3. Flange width: 200-800mm

4. Flange thickness: 8-40mm

5. Workpiece length: 6000-15000mm

6. Welding speed: 400-1000mm/min (adjusted according to plate thickness, welding formation, etc.)

7. Working power: about 125KW (including two 1250A domestic welding power supplies)

8. Hydraulic system pressure: 10MPa

9. Power supply: AC 380V 50HZ 3-phase

10. High-efficiency hydraulic pump station (with cleaning window)

11. High-efficiency loading rack (front-end alignment, 2 sets of centering manipulators)

12. Standard electrical cabinet with remote control device

13. Equipped with 2 sets of telescopic wire racks
