Slitting Line

      The slitting line opens and flattens the steel coil, then uses the rotary shear device to cut the steel plate into the required narrow strip, recoils the narrow strip with the recoiler, and then packs the coiled narrow coil.

Process: Uncoiling - Slitting - Recoiling
Applicable Material: Cold-Rolled Plate, Electrolytic Galvanized Plate, Hot Dip Galvanized Plate, Color-Coated Plate, Stainless Steel Plate, Aluminium Plate, Tinplate, Copper Plate, etc.
Material Thickness: 0.15 - 4.0mm
Material Width: 300 - 2000mm
Width Accuracy: +0.05mm
Slitting Quantity: Max. 35
Winding Split-level Floor: 21mm
Cutting Burr: <3%
Max. Speed: 200m/min

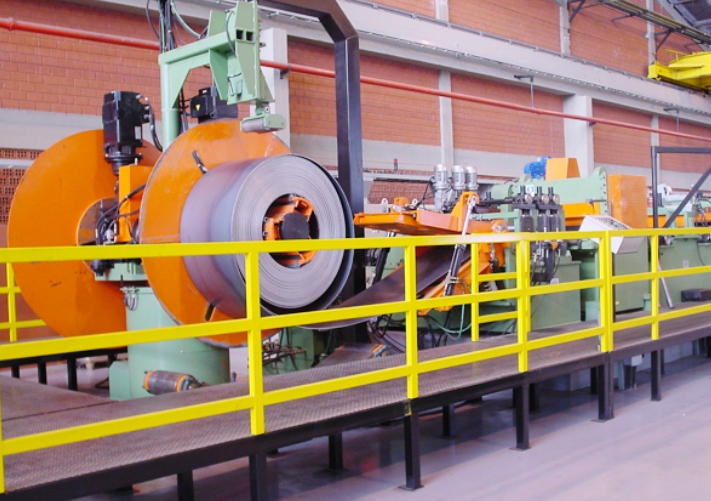

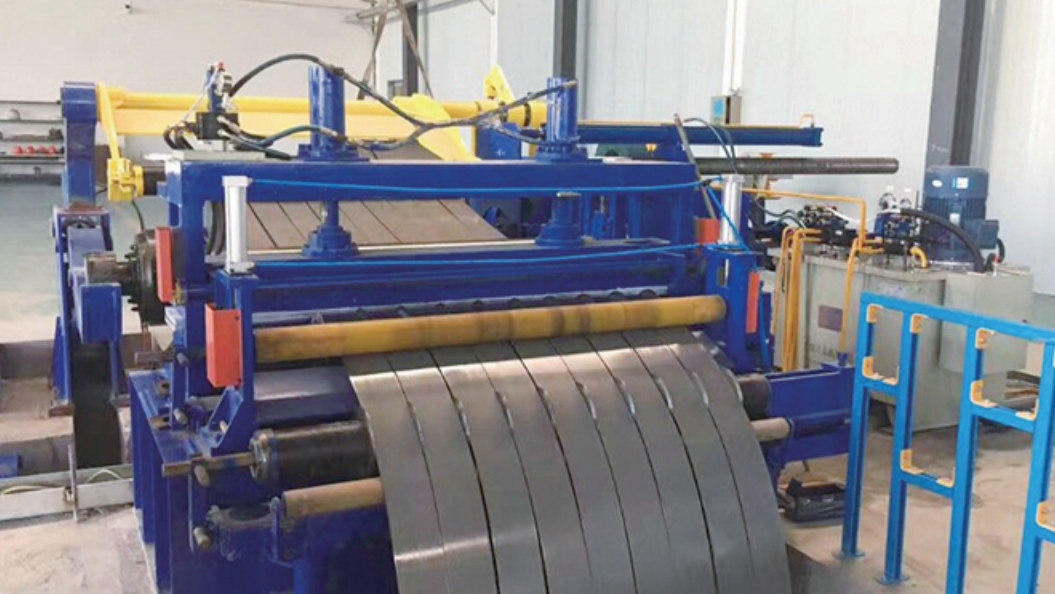

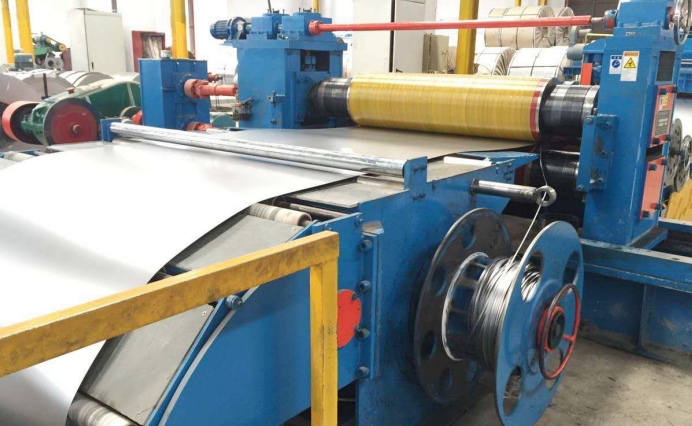

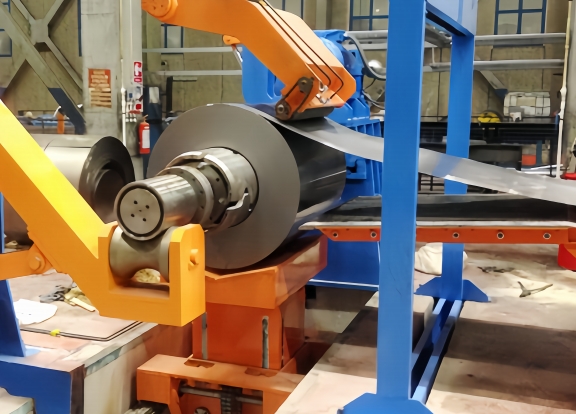

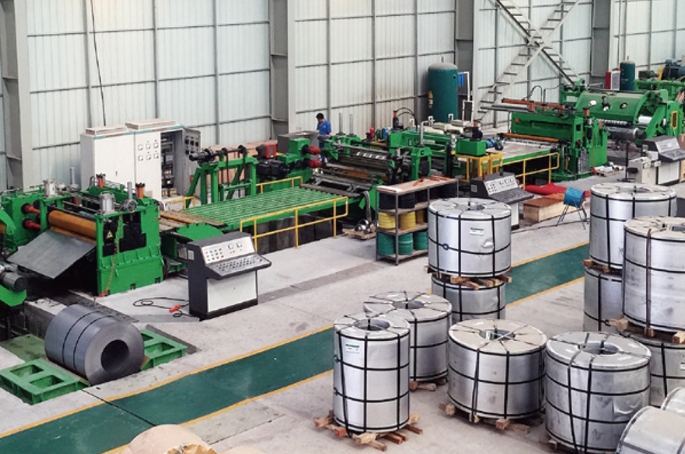

Typical Achievements:
